Vibro Finishing
Fast and Efficient Finishing of Large Batch Small Parts – Steels, Alu, Brass
Glass Bead Blasting Metal
Perfect for the cost effective satin finishing of non-ferrous parts, glass bead blasting is a safe, versatile method that leaves a beautiful satin sheen on brass, aluminium, copper and stainless steel. The resulting surface is also a great key / prep for further finishing like paint, powder coat, ceramic and electro-plating. Glass bead blasting will conceal machine lines, remove discolouration and light coatings. The very fine glass beads will make contact with the entire surface including tight spots, internals and corners leaving a uniform finish across the part. Our glass bead cabinet can process items up to 600 x 600 x 600 mm / 25kg.
What Is Blast Finishing
?
Blast finishing is a process that uses high-pressure air to propel small particles of an abrasive material at a surface, which cleans, polishes, or otherwise modifies it. There is no other way to achieve this unique finish
What Is Bead Blasting?
Bead blasting is the most common form of blast finishing. It’s a process where small beads made of plastic or glass are propelled by high-pressure air at a metal surface, creating a smooth finish with no graining or directional patterns. Blasting is great as preparation for painting, coating or electro plating metal surfaces, as the satin finish allows paint or coating to adhere to the surface.
Benefits Of Bead Blasting
1. Efficient removal of surface contaminants:
dirt, rust and old paint are blasted away leaving the part clean and ready for
further processing
2. Improved bonding of coatings:
bead blasting creates a roughened surface that allows coatings to adhere
more effectively.
3. Environmentally friendly:
bead blasting is a dry process that does not require the use of chemicals or
solvents.
4. Cost Effective:
Bead blasting is quick, efficient and uses minimal materials.
5. A uniform finish:
Bead blasting will create a uniform finish on every part
Our team has the experience and skills to handle any job you need, no matter what material we’re working on. So contact us today!
Benefit from the high power performance of bead blast cleaning!
Bead blasting, also known as glass bead blasting or blast finishing, is a process that involves the surface treatment of the material. The type of media used for treatment is typically glass beads. Bead blasting can be used on a variety of materials and has several applications, including: Cleaning, Descaling, Deburring, Peening and Polishing.
Glass Bead Blasting Metal
SCP offer bead blasting services for a wide range of applications, predominantly the finishing of machined aluminium parts prior to anodising / plating.
Bead blasting is an effective method of quickly finishing items, removing machine lines, cleaning and deburring. It’s perfect for items that just need a uniform finish all over, we only use high quality very fine glass beads that leave a smooth semi-bright finish.
Our blast cabinet can accept items up to approx. 600 x 600mm and is suitable for all non-ferrous metals and stainless steel.
SCP is pleased to offer an advanced vibratory finishing solution that is capable of effectively addressing your mass finishing requirements
Vibro Finishing Explained
Vibratory finishing is a type of mass finishing manufacturing process used to deburr, radius, descale, burnish, clean, and brighten a large number of relatively small workpieces. In this batch-type operation, specially shaped pellets of media and the workpieces are placed into the tub of a vibratory tumbler. The tub of the vibratory tumbler and all of its contents are then vibrated. The vibratory action causes the media to rub against the workpieces which yield the desired result. Depending on the application this can be either a dry or wet process
Our Vibro Services

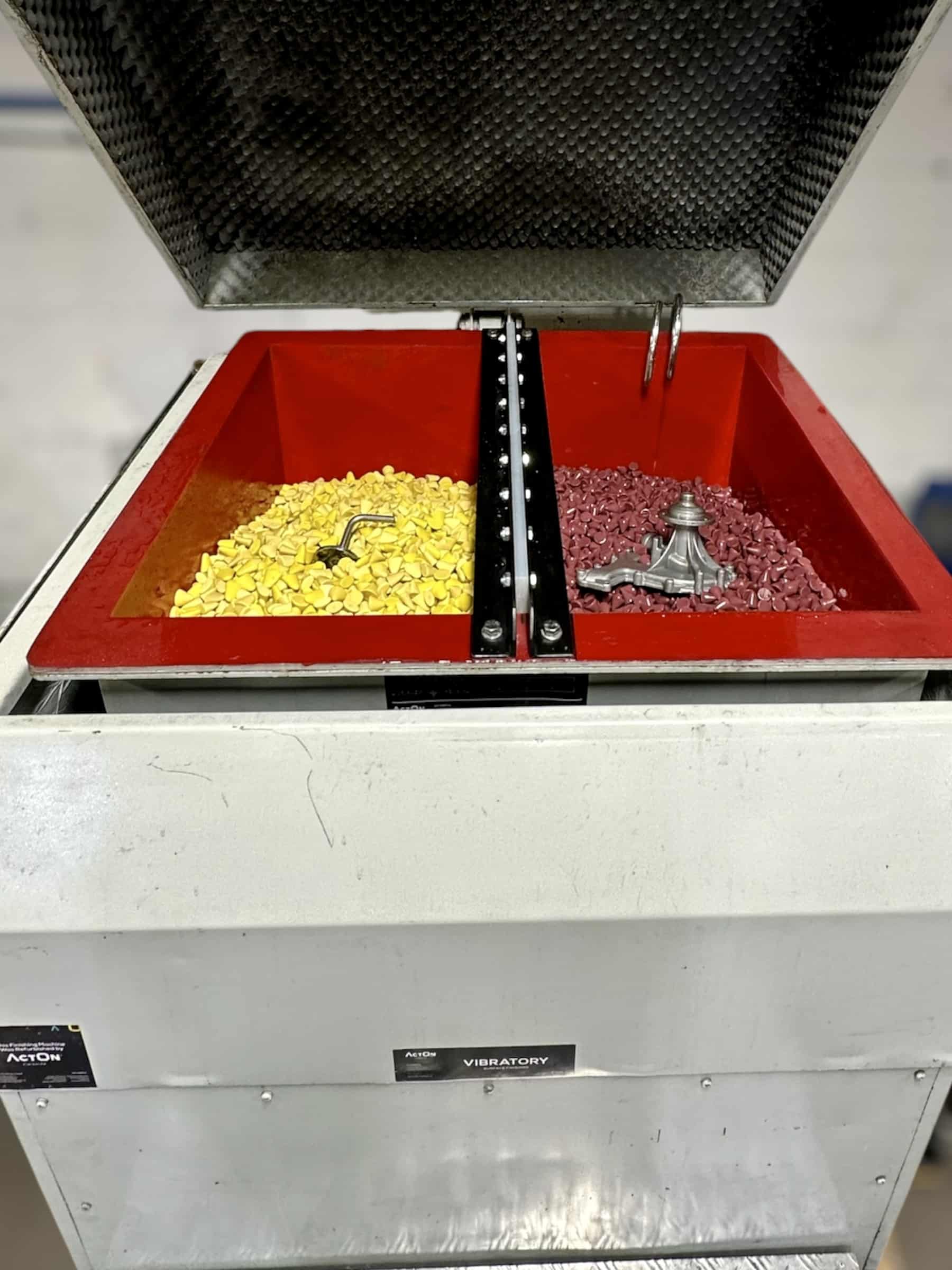

SCP operate a large 500kg capacity Vibro Trough. We stock a variety of media and chemical compounds to suit many different finishing needs.
Benefits of Vibro Finishing
- Cost effective solution for large qty's of small parts, suitable for fragile parts. Consistent results every time, ideal preparation for subsequent finishing process such as electro plating and anodising.

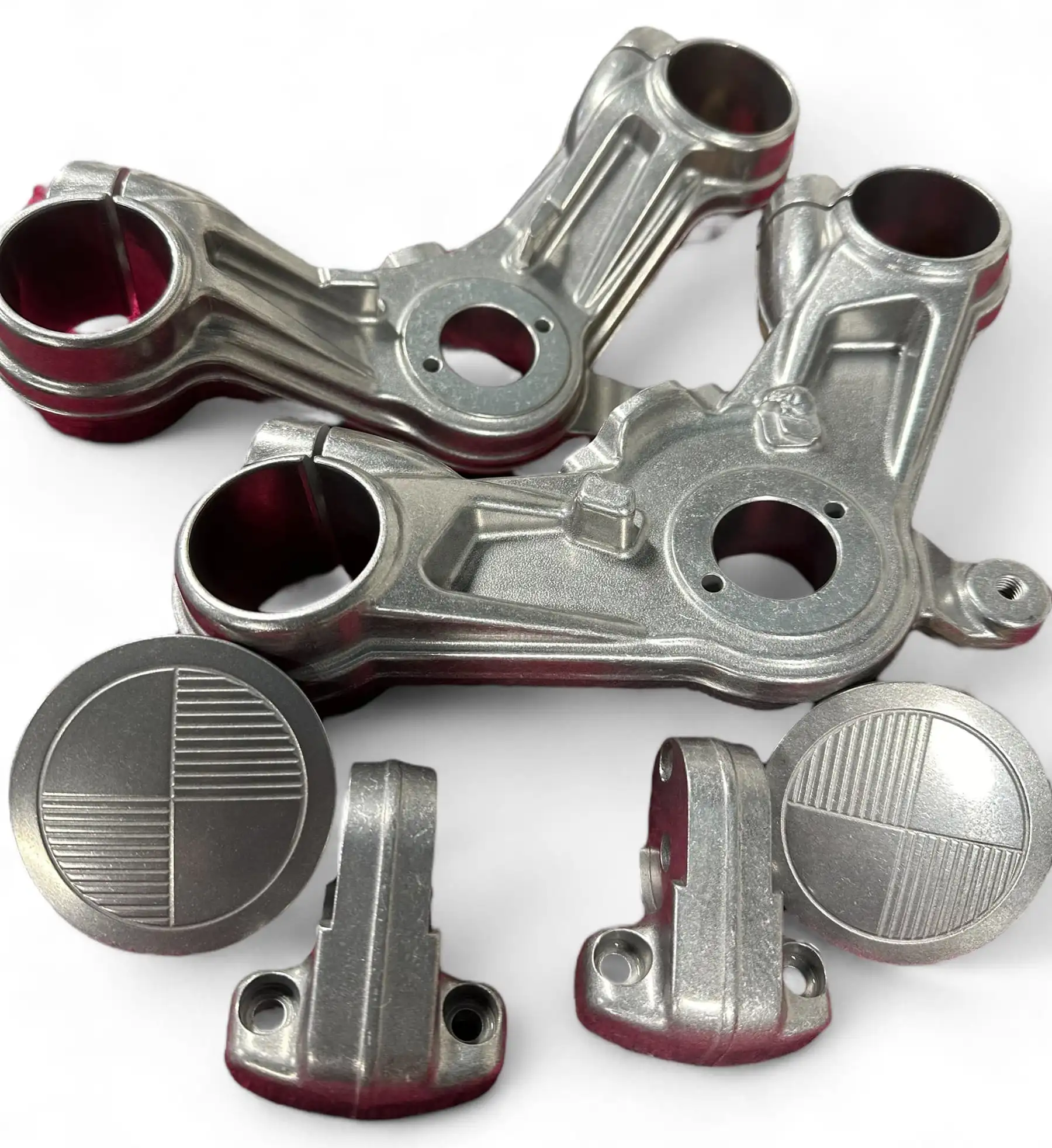

Gallery
The Process...
1) Contact
Send us a photo of the parts by email or whatsapp and we’ll provide an estimate and advice.
2) Delivery
Drop your parts into the workshop or we can arrange transport by our own
van or by DHL. Prices and lead times will then be confirmed.
3) Processing
Your parts will be finished quickly and efficiently by our team of expert
metal polishers then inspected, cleaned and protected for transport.
4) Payments & Delivery
Payment is due prior to collection, we accept debit /credit cards, cash or bacs. For items being shipped by DHL you may request a photo before making payment.
